Fire Magic Aurora vs Echelon vs Legacy: Built-In Gas Grills Compared (2026)
Short answer: Echelon Diamond is Fire Magic's top-of-the-line series, Aurora shares many Echelon features, and Legacy is Fire Magic's most affordable line. The Aurora A660i and Echelon Diamond E660i have the same 660 sq. in. cooking surface and 75,000 BTU main burners. The E660i adds an included charcoal/smoker basket and a digital thermometer option, and lists an 11,000 BTU Quantum backburner. The Legacy Deluxe is a smaller two-burner grill with a much shallower cutout.
Fire Magic built-in grills at a glance
| Aurora A660i | Aurora A790i | Echelon Diamond E660i | Echelon Diamond 48" | Legacy Deluxe | |
|---|---|---|---|---|---|
| Series | Aurora | Aurora | Echelon Diamond | Echelon Diamond | Legacy |
| Main burners | 3 | — | — | 4 | 2 |
| Main burner output | 75,000 BTU | 90,000 BTU | 75,000 BTU | 112,000 BTU | 42,000 BTU |
| Primary cooking surface | 30" x 22" (660 sq. in.) | 36" x 22" (792 sq. in.) | 30" x 22" (660 sq. in.) | 48" x 22" (1,056 sq. in.) | 368 sq. in. |
| Warming rack / secondary surface | 30" x 8" (240 sq. in.) | 36" x 8" (288 sq. in.) | 30" x 8" (240 sq. in.) | 48" x 8" (384 sq. in.) | 184 sq. in. |
| Cutout (W x D x H) | 31.25" x 23.5" x 11.5" | 37" x 23.5" x 11.5" | 31.25" x 23.5" x 11.5" | 50" x 23.5" x 11.5" | 29.5" x 16.5" x 14" |
| Ignition | Hot surface (110 V electricity needed) | 120 VAC/12 V hot surface | 120 VAC/12 V hot surface | 120 VAC/12 V hot surface | Simple electronic |
| Thermometer | Analog | Analog | Analog or digital | Analog or digital | — |
| Backburner | — | — | Quantum, 11,000 BTU | Two Quantum, 22,000 BTU, with rotisserie kit | — |
| Infrared burner | — | — | — | Left side | — |
| Charcoal/smoker basket | Not included | — | Included | Included | — |
| Magic View Window | Optional | Optional | Optional | Optional | — |
| Fuel | Propane or natural gas | Propane or natural gas | Propane or natural gas | Propane or natural gas | Propane or natural gas |
A dash means the spec is not published on the product page.
How Aurora, Echelon Diamond and Legacy differ
The A660i and E660i pages both list Diamond Sear cooking grids, cast stainless steel burners, heat zone separators, back-lit knobs, interior halogen lights and hot surface ignition. Where the series split is controls and extras. Both Echelon Diamond models list Quantum backburners and an included charcoal/smoker basket, and can be ordered with an analog or a digital thermometer. The E660i page also describes a contoured face with knobs whose flame turns red when on, and a double-wall rounded oven hood. Both Aurora models list an analog thermometer.
The Legacy Deluxe is a different design: a countertop built-in with a satin stainless steel facade, two burners and simple electronic ignition. Its cutout is 16.5 inches deep, compared with 23.5 inches for the Aurora and Echelon Diamond models above.

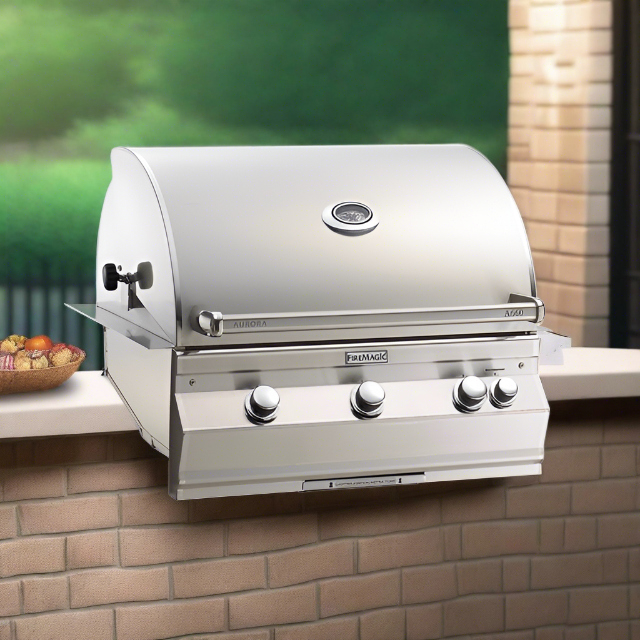

Aurora A660i: 30-inch, three burners
The Aurora A660i is the 30-inch, three-burner Aurora.
- Three 304 cast stainless steel burners with precision porting, 75,000 BTU total.
- 660 sq. in. primary surface plus a 240 sq. in. warming rack. Fire Magic lists a burger count of 24.
- Diamond Sear grids with a wide, flat top, plus heat zone separators and flash tubes.
- Back-lit LED knobs, interior halogen lights, analog thermometer and a spring-assisted hood.
- 304 stainless steel exterior; listed as made in USA. Overall size 36.5" W x 27" H x 29.75" D.
- No smoker box included.
Aurora A790i: the 36-inch cooking area
The Aurora A790i is the larger Aurora, with a 36" x 22" cooking area (792 sq. in.) and a 36" x 8" warming rack. Its main burners total 90,000 BTU, and it needs a 37-inch-wide cutout. It has Diamond Sear grids, interior halogen lights, back-lit knobs, an analog thermometer and 120 VAC/12 volt hot surface ignition. The page does not list the number of burners.
A note on backburners: backburner and rotisserie details for the Aurora models are not consistently listed on their product pages, so we have left them blank. Contact us to confirm before planning on rotisserie cooking with an Aurora.
Echelon Diamond E660i: A660i size, more included
The Echelon Diamond E660i has the same 30" x 22" cooking surface and 75,000 BTU main burners as the A660i, plus these features:
- 1/4-inch-thick cast stainless steel "E" burners and 16-gauge stainless steel flavor grids.
- All-304 stainless steel trapezoid Diamond Sear grids and heat zone separators between each burner.
- Recessed Quantum backburner (11,000 BTU) for rotisserie cooking, with a polished stainless steel cover included.
- Charcoal/smoker basket included.
- Thermometer choice: analog, or an illuminated digital thermometer with meat probe, timer and alarm settings.
- Hot surface ignition that requires a 120 volt AC power supply. Made in USA.
Echelon Diamond 48-inch: the largest here
The Echelon Diamond 48-inch offers 1,056 sq. in. of cooking surface (48" x 22") and a 384 sq. in. warming rack. The 4-burner grill's main burners total 112,000 BTU. It comes with two Quantum backburners (22,000 BTU) and a rotisserie kit, and the page lists an infrared burner on the left side. It also includes a charcoal/smoker basket and interior halogen lights, and you can choose an analog or digital thermometer. It needs a 50-inch-wide cutout. A cover (192-3648F) is listed as optional, so it is not included.
Legacy Deluxe: compact and space-conscious
The Legacy Deluxe Gourmet is from Fire Magic's most affordable line, built into a countertop with a simple satin stainless steel facade.
- Two cast 304 stainless steel U burners at 21,000 BTU each, 42,000 BTU total. The burners are 1/4 inch thick, weigh up to 12 lbs, and have a protective lip above the ports to help prevent clogging from grease.
- 368 sq. in. main cooking surface plus 184 sq. in. secondary, 552 sq. in. total.
- Cooking grids of heavy-duty 304 stainless steel, plus flavor grids to spread heat and reduce flare-ups.
- Simple electronic ignition.
- Overall 31.5" W x 19.5" D x 24.5" H; cutout 29.5" W x 16.5" D x 14" H; weighs 125 lbs.
Which one should you buy?
- 30-inch grill with analog controls: Aurora A660i.
- Same cooking area as the A660i, plus a smoker basket and a digital thermometer option: Echelon Diamond E660i.
- More grill space without going to 48 inches: Aurora A790i (792 sq. in.).
- Largest cooking area, rotisserie kit and infrared burner: Echelon Diamond 48-inch.
- Shallow counter or tight space: Legacy Deluxe, with a 16.5-inch-deep cutout.
Compare more models in our Fire Magic grills collection, or browse all outdoor grills.
Frequently asked questions
What is the difference between the Fire Magic A660i and E660i?
Both have a 30" x 22" (660 sq. in.) cooking surface, a 240 sq. in. warming rack and 75,000 BTU main burners. The E660i adds an included charcoal/smoker basket and a digital thermometer option, and lists an 11,000 BTU Quantum backburner. Both list the same 31.25" x 23.5" x 11.5" cutout.
Do Fire Magic built-in grills need electricity?
Yes, the four hot surface ignition models need a power supply: the E660i page says 120 volt AC, and the A660i and A790i pages say 110V electricity is needed. The A790i and Echelon Diamond 48-inch list 120 VAC/12 volt hot surface ignition. The Legacy Deluxe uses simple electronic ignition.
Which Fire Magic built-in grill has a rotisserie?
The Echelon Diamond 48-inch includes a rotisserie kit with two Quantum backburners. The E660i has a Quantum backburner for rotisserie cooking, but its page does not say a rotisserie kit is included.
Can I get these grills for natural gas?
Yes. All five are listed in propane and natural gas versions.
What warranty comes with the Legacy Deluxe?
Its page lists a lifetime warranty on the cast stainless steel burners, stainless steel rod cooking grids and stainless steel housing. It also lists 15 years on brass valves, inner liners and manifold assemblies, 5 years on flavor grids, and 1 year on ignition systems and electronic components. The Aurora and Echelon Diamond pages do not list warranty terms.
