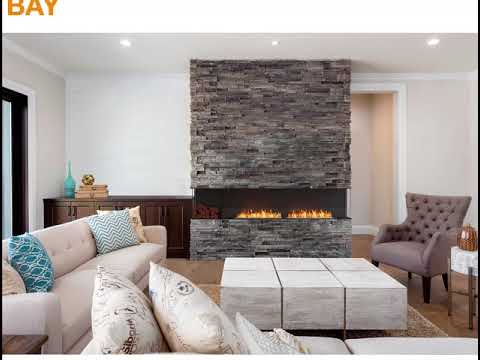

Introducing the EcoSmart 104BY Flex Bay Fireplace: Revel in the Entrancing Flames from Every Angle!
Enhance your space with the captivating allure of the EcoSmart 104BY Flex Bay Fireplace. Experience the mesmerizing dance of flames visible from the front, left, and right sides, transforming any room into a focal point of elegance. Whether you're in a cozy home or a bustling commercial setting like a restaurant, bar, or cafe, the Flex Bay fireboxes create an unparalleled centerpiece that captivates.
Ignite the beauty and elegance of the EcoSmart 104BY Flex Bay Fireplace. Elevate your ambiance with the unparalleled charm of mesmerizing flames from every angle.
What's Included?
Fire Lighter
- This refillable butane lighter supports the safe ignition of the lighting rod. The length of the lighter further enhances the management of the lighting process.
Lighting Rod
- This operational accessory enables you to safely adjust the slider position of the Burner at any time. It is also used for ignition and extinguishing procedures.
Jerry Can 5L
- Safety features include automatic stop flow, fast flow rate, locking thumb button control, and a self-venting system.
Bottle Adaptor
- The adaptor connects the safety spout from the Jerry Can straight onto the e-NRG bottle making fuelling the fire quicker and easier.
XL Baffles
- XL Baffles are used to regulate and further stabilize the flame increasing the fuel efficiency of the burner.
Black Glass Charcoal
- The Black Glass Charcoal is made from high-quality tempered glass and has been designed to withstand harsh weather and temperatures of up to 1300ºF/700ºC.
Features
Application
- Indoor or outdoor single room application. With three open sides, view the flame from multiple vantage points.
Colors
- Available in black, the firebox comes with stainless steel burners and decorative Black Glass Charcoal.
No Gas or Electricity
- No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.
Clean burning
- All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean-burning, you don’t need a flue or a chimney.
Zero Clearance
Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.
Quick and Easy Assembly
- Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.
Luxurious Finish
- Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.
Rust Proof
- Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors and outdoors.
Wind Screen
- Includes a translucent, toughened glass fire screen that provides an added layer of safety, peace of mind, and comfort.
Tested World Wide
- Our collection has been thoroughly tested against a number of global standards and is UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfies the ACCC Safety Mandate for Australia.
Specifications
Flex 104BY Specifications
Construction
| Weight |
153kg [337lb] |
|
Model Dimensions: mm [in]
|
W 2732mm [108in]
D 365mm [14.4in]
H 807mm [31.8in]
|
|
Viewing Area: mm [in]
|
W 2645mm [104in]
D 340mm [13.4in]
H 502mm [19.8in]
|
| Materials |
Mild Steel & Toughened Glass |
| Model Colour |
Black |
| Burner Colours |
Stainless Steel
Black
|
Burner Efficiency (XL1200)
| Capacity: |
20 L [5.3 Gal] |
| Heats on Average: |
130m2 [1399ft2] |
| Minimum Room: |
230m3 [8122ft3] |
| Burn Time: |
9-14h |
| Thermal Output: |
34 MJ/h - 30580 BTU/h - 9 kW |
Packaging
| Shipping Weight |
209kg [461lb] |
|
Packaging Dimensions: mm [in] |
L 2937mm [116in]
W 536mm [21.1in]
H 1068mm [42in]
|
| CBM |
1.68m3 |
| Type |
Crate (Inc Skid) |
XL1200 Packaging
| Shipping Weight |
19.50kg [42.99lb] |
|
Packaging Dimensions: mm [in] |
L 1601mm [63in]
W 306mm [12in]
H 291mm [11.5in]
|
| CBM |
0.14m3 |
| Type |
Carton |
Flex 104BY.BXL & Flex 104BY.BXR Specifications
Construction
| Weight |
146kg [321lb] |
|
Model Dimensions: mm [in]
|
W 2733mm [108in]
D 365mm [14.4in]
H 807mm [31.8in]
|
|
Viewing Area: mm [in]
|
W 2645mm [104in]
D 340mm [13.4in]
H 502mm [19.8in]
|
| Materials |
Mild Steel & Toughened Glass |
| Model Colour |
Black |
| Burner Colours |
Stainless Steel
Black
|
Burner Efficiency (XL900)
| Capacity: |
18 L [4.8 Gal] |
| Heats on Average: |
120m2 [1292ft2] |
| Minimum Room: |
220m3 [7769ft3] |
| Burn Time: |
8-13h |
| Thermal Output: |
32 MJ/h - 30000 BTU/h - 8.8 kW |
Packaging
| Shipping Weight |
189kg [418lb] |
|
Packaging Dimensions: mm [in] |
L 2937mm [116in]
W 536mm [21.1in]
H 1068mm [42in]
|
| CBM |
1.68m3 |
| Type |
Crate (Inc Skid) |
XL900 Packaging
| Shipping Weight |
15kg [33.07lb] |
|
Packaging Dimensions: mm [in] |
L 1301mm [51.2in]
W 306mm [12in]
H 291mm [11.5in]
|
| CBM |
0.12m3 |
| Type |
Carton |
Flex 104BY.BX2 Specifications
Construction
| Weight |
150kg [331lb] |
|
Model Dimensions: mm [in]
|
W 2733mm [108in]
D 365mm [14.4in]
H 807mm [31.8in]
|
|
Viewing Area: mm [in]
|
W 2645mm [104in]
D 340mm [13.4in]
H 502mm [19.8in]
|
| Materials |
Mild Steel & Toughened Glass |
| Model Colour |
Black |
| Burner Colours |
Stainless Steel
Black
|
Burner Efficiency (XL1200)
| Capacity: |
10 L [2.6 Gal] |
| Heats on Average: |
65m2 [700ft2] |
| Minimum Room: |
115m3 [4061ft3] |
| Burn Time: |
9-14h |
| Thermal Output: |
17 MJ/h - 15290 BTU/h - 4.5 kW |
Packaging
| Shipping Weight |
201kg [443lb] |
|
Packaging Dimensions: mm [in] |
L 2937mm [116in]
W 536mm [21.1in]
H 1068mm [42in]
|
| CBM |
1.68m3 |
| Type |
Crate (Inc Skid) |
XL1200 Packaging
|
Shipping Weight
|
19.50kg [42.99lb]
|
|
Packaging Dimensions: mm [in]
|
L 1601mm [63in]
W 306mm [12in]
H 291mm [11.5in]
|
|
CBM
|
0.14m3
|
|
Type
|
Carton
|
