EcoSmart 140BY Flex Bay Fireplace

SKU ESF.FX.140BY.BXL
Original price $21,990.00

Save up to $4,795.00 Save $0.00
Original price $21,990.00 - Original price $23,890.00
Original price $21,990.00
Current price $17,595.00
$17,595.00 - $19,095.00
Current price $17,595.00
+ FREE SHIPPING
Configuration: Left
Burner Type & Color: XL | Ethanol | Stainless Steel
Free Manufacturer's Warranty

✓ Free Manufacturer's Warranty ($299 Value)

Free Shipping

No Price Limits, Enjoy Free Shipping on All Orders.

Why Buy from Archic Furniture?

  • Authorized EcoSmart Fire Dealer
  • Best Prices Online Guarantee
  • Fast FREE Shipping
  • Any Questions? Talk to EcoSmart Fire Experts ‪(916)-262-7257

Introducing the Captivating Bay Fireplace Insert – Experience Alluring Flames from Every Angle.

Elevate your living spaces with the mesmerizing allure of the Bay Fireplace Insert. Meticulously designed for single-room installation, this masterpiece features three open sides that showcase the hypnotic flame from the front, left, and right sides, making it a captivating focal point from various vantage points.

Ideal for both commercial and residential spaces, the Flex Bay fireboxes bring a touch of elegance to restaurants, bars, cafes, and homes where a stunning centerpiece is desired.

Experience the Elegance and Charm of the Bay Fireplace Insert—Where Artistry, Innovation, and Functionality Converge.

What's Included?

Fire Lighter
This refillable butane lighter supports the safe ignition of the lighting rod. The length of the lighter further enhances the management of the lighting process.

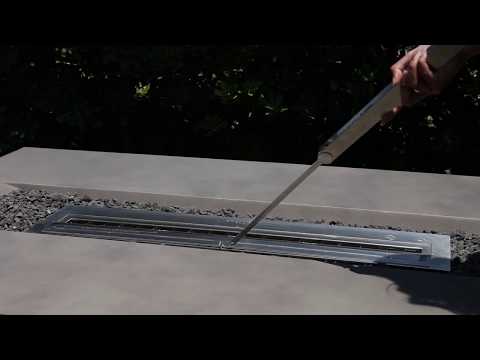

Lighting Rod
This operational accessory enables you to safely adjust the slider position of the Burner at any time. It is also used for the ignition and extinguishing procedures.

Jerry Can 1.25 Gal
Safety features include automatic stop flow, fast flow rate, locking thumb button control, and a self-venting system.

Bottle Adaptor
The adaptor connects the safety spout from the Jerry Can straight onto the e-NRG bottle making fuelling the fire quicker and easier.

XL Baffles
XL Baffles are used to regulate and further stabilize the flame increasing fuel efficiency of the burner.

Black Glass Charcoal
The Black Glass Charcoal is made from high-quality tempered glass and has been designed to withstand harsh weather and temperatures of up to 1300ºF/700ºC.

Features

Application
Indoor or outdoor single room application. With three open sides, view the flame from multiple vantage points.

Colors
Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

No gas or electricity
No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Clean burning
All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean-burning, you don’t need a flue or a chimney

Zero clearance
Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and easy assembly
Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Rust Proof
Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Luxurious finish
Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Decorative side box
Includes two decorative side boxes to fill with your chosen noncombustible accessory.

Optional log sets
Eye-catching accessory for the decorative side box. Made from stainless steel with a patina finish, they are available in two different finishes: Brass or Copper.

Wind Screen
Included integrated windscreen sits flush behind frame.

Tested World Wide
Our collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfies the ACCC Safety Mandate for Australia.


Specifications

Flex 140BY (Left and Right) Specifications

Construction

Weight 431 lb [196kg]
Model Dimensions: in [mm]

W 144 in [3653mm]

D 14.4 in [365mm]

H 31.8 in [807mm]

Viewing Area: in [mm]

W 140 in [3560mm]

D 13.4 in [340mm]

H 19.8 in [502mm]

Materials Mild Steel & Toughened Glass
Model Colour Black
Burner Colours

Stainless Steel

Black



Burner Efficiency (XL900)

Capacity: 7.1 Gal [27 L]
Heats on Average: 1938 ft2 [180m2]
Minimum Room: 11654 ft3 [330m3]
Burn Time: 8-13h
Thermal Output: 48 MJ/h - 45000 BTU/h - 13.20 kW
Operating Costs: $1.50 - $3.50 / Hour



Packaging

Shipping Weight 562 lb [255kg]
Packaging Dimensions: in [mm]

L 152 in [3857mm]

W 21.1 in [536mm]

H 42 in [1068mm]

CBF 77.97 ft3
Type Crate (Inc Skid)

XL900 Packaging

Shipping Weight 33.07 lb [15kg]
Packaging Dimensions: in [mm]

L 51.2 in [1301mm]

W 12 in [306mm]

H 11.5 in [291mm]

CBF 4.09 ft3
Type Carton



Flex 140BY (Dual) Specifications

Construction

Weight 442 lb [200kg]
Model Dimensions: in [mm]

W 144 in [3653mm]

D 14.4 in [365mm]

H 31.8 in [807mm]

Viewing Area: in [mm]

W 140 in [3560mm]

D 13.4 in [340mm]

H 19.8 in [502mm]

Materials Mild Steel & Toughened Glass
Model Colour Black
Burner Colours

Stainless Steel

Black



Burner Efficiency( XL1200)

Capacity: 5.3 Gal [20 L]
Heats on Average: 1399 ft2 [130m2]
Minimum Room: 8122 ft3 [230m3]
Burn Time: 9-14h
Thermal Output: 34 MJ/h - 30580 BTU/h - 9 kW
Operating Costs: $1.50 - $3.50 / Hour



Packaging

Shipping Weight 477 lb [216kg]
Packaging Dimensions: in [mm]

L 152 in [3857mm]

W 21.1 in [536mm]

H 42 in [1068mm]

CBF 77.97 ft3
Type Crate (Inc Skid)



XL1200 Packaging

Shipping Weight 42.99 lb [19.50kg]
Packaging Dimensions: in [mm]

L 63 in [1601mm]

W 12 in [306mm]

H 11.5 in [291mm]

CBF 5.03ft3
Type Carton



Product Manuals

Spec Sheet

C & I Manual

Burner Manual
