Experience Captivating Flames from Every Angle

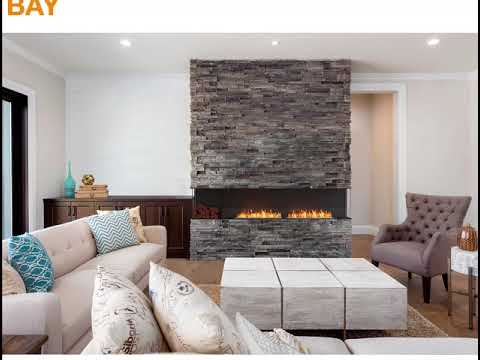

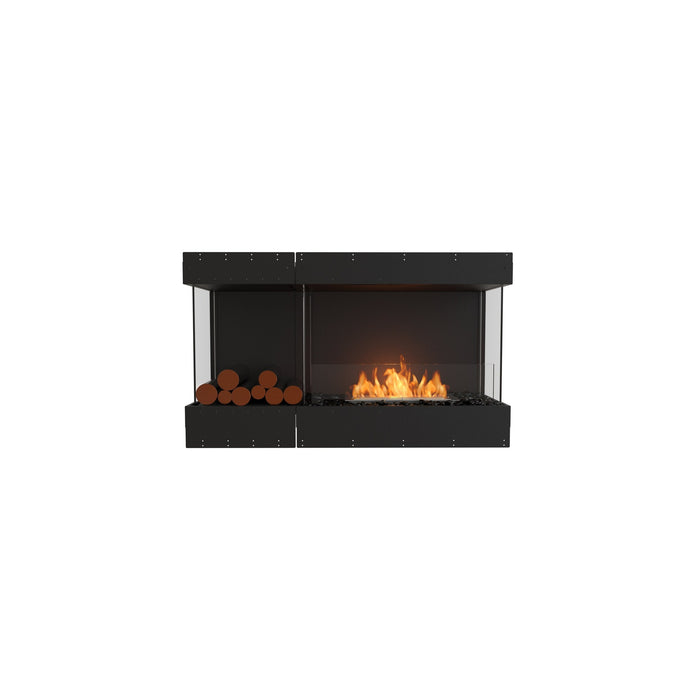

Introducing the Flex Bay Fireplace Insert - an embodiment of elegance, innovation, and versatility. This stunning masterpiece, designed for single-room installation, features three open sides that cast an enchanting spell, allowing the mesmerizing flame to be admired from the front and both left and right sides. The result? An alluring focal point that commands attention from multiple vantage points.
Step into a world where fire illuminates artistry, and every glance becomes an experience. The Flex Bay Fireplace Insert welcomes you to create captivating indoor and outdoor realms that celebrate luxury, creativity, and conscious design. Let the flames weave tales of allure, while Flex Bay becomes a canvas of sophistication and warmth.
What's Included?
Fire Lighter - This refillable butane lighter supports the safe ignition of the lighting rod. The length of the lighter further enhances the management of the lighting process.
Lighting Rod - This operational accessory enables you to safely adjust the slider position of the Burner at any time. It is also used for ignition and extinguishing procedures.
Jerry Can 1.25 Gal - Safety features include automatic stop flow, fast flow rate, locking thumb button control, and a self-venting system.
Bottle Adaptor - The adaptor connects the safety spout from the Jerry Can straight onto the e-NRG bottle making fuelling the fire quicker and easier.
XL Baffles - XL Baffles are used to regulate and further stabilize the flame increasing the fuel efficiency of the burner.
Black Glass Charcoal - The Black Glass Charcoal is made from high-quality tempered glass and has been designed to withstand harsh weather and temperatures of up to 1300ºF/700ºC.
Features
Application - Indoor or outdoor single room application. With three open sides, view the flame from multiple vantage points.
Colors - Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.
No Gas or Electricity - No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.
Clean Burning - All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean-burning, you don’t need a flue or a chimney.
Zero Clearance - Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.
Quick and Easy Assembly - Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.
Rust Proof - Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.
Luxurious Finish - Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.
Wind Screen - Included integrated windscreen sits flush behind frame.
Tested World Wide - Our collection has been thoroughly tested against a number of global standards and is UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfies the ACCC Safety Mandate for Australia.
Specifications
Flex 50BY Specifications
Construction
Weight
71.80kg [158lb]
Model Dimensions: mm [in]
W 1352mm [53.2in]
D 365mm [14.4in]
H 807mm [31.8in]
Viewing Area: mm [in]
W 1270mm [50in]
D 340mm [13.4in]
H 502mm [19.8in]
Materials
Mild Steel & Toughened Glass
Model Color
Black
Burner Colors
Stainless Steel
Black
Flex 50BY Burner Efficiency (XL900)
Capacity:
9 L [2.4 Gal]
Heats on Average:
60m2[646ft2]
Minimum Room:
110m3[3885ft3]
Burn Time:
8-13h
Thermal Output:
16 MJ/h - 15000 BTU/h - 4.4 kW
Flex 50BY Packaging
Shipping Weight
88.40kg [195lb]
Packaging Dimensions: mm [in]
L 1557mm [61.3in]
W 536mm [21.1in]
H 1068mm [42in]
CBM
0.89m3
Type
Crate (Inc Skid)
XL900 Packaging
Shipping Weight
15kg [33.07lb]
Packaging Dimensions: mm [in]
L 1301mm [51.2in]
W 306mm [12in]
H 291mm [11.5in]
CBM
0.12m3
Type
Carton
Flex 50BY.BXL & Flex 50BY.BXR Specifications
Construction
Weight
76.20kg [168lb]
Model Dimensions mm [in]
W 1353mm [53.3in]
D 365mm [14.4in]
H 807mm [31.8in]
Viewing Area mm [in]
W 1270mm [50in]
D 340mm [13.4in]
H 502mm [19.8in]
Materials
Mild Steel & Toughened Glass
Model Color
Black
Burner Colors
Stainless Steel
Black
Burner Efficiency (XL500)
Capacity:
5 L [1.3 Gal]
Heats on Average:
40m2[431ft2]
Minimum Room:
80m3[2825ft3]
Burn Time:
10 - 13 h
Thermal Output:
12 MJ/h - 11430 BTU/h - 3.4 kW
Packaging
Shipping Weight
95.90kg [211lb]
Packaging Dimensions: mm [in]
L 1557mm [61.3in]
W 536mm [21.1in]
H 1068mm [42in]
CBM
0.89m3
Type
Crate (Inc Skid)
XL500 Packaging
Shipping Weight
8.6kg [18.96lb]
Packaging Dimensions: mm [in]
L 901mm [35.5in]
W 306mm [12in]
H 291mm [11.5in]
CBM
0.08m3
Type
Carton
Product Manuals
Spec Sheet
Installation Guide
Burner Manual
