Rediscover Elegance with the EcoSmart Fire Grate 30
The Grate 30 redefines traditional fireplaces, offering a modern interpretation that effortlessly complements both classic and contemporary settings. Designed to breathe new life into old fireplaces or custom spaces, its bold aesthetics and graceful flame make it a versatile choice for rejuvenating your surroundings.
Elevate Your Space with the Grate 30: Embrace a modern interpretation of timeless fireplaces with the Grate 30. Whether it's breathing life into an old hearth or enhancing a custom space, this sleek design and captivating flame are sure to transform your surroundings into a haven of elegance.
What's Included?
Fire Lighter - This refillable butane lighter supports the safe ignition of the lighting rod. The length of the lighter further enhances the management of the lighting process.

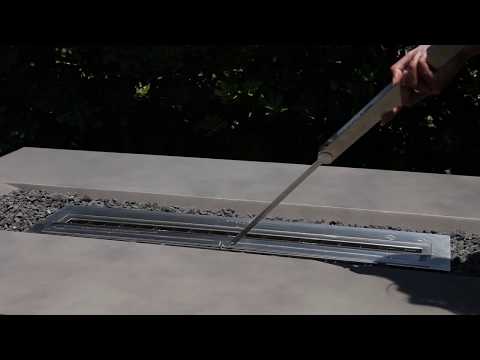

Lighting Rod - This operational accessory enables you to safely adjust the slider position of the Burner at any time. It is also used for ignition and extinguishing procedures.
Jerry Can 5L - Safety features include automatic stop flow, fast flow rate, locking thumb button control, and a self-venting system.

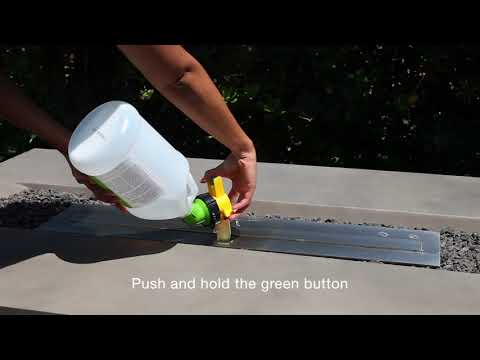

Bottle Adaptor - The adaptor connects the safety spout from the Jerry Can straight onto the e-NRG bottle making fuelling the fire quicker and easier.
XL Baffles XL Baffles are used to regulate and further stabilize the flame increasing the fuel efficiency of the burner.
Features
Minimum Fuss - Delivering the ambiance of an open fire – but minus the mess, odor, sparks, and soot due to the clean-burning, eco-friendly e-NRG bioethanol.
Fluid™ Concrete Technology - Our proprietary technology offers a streamlined yet sophisticated system that delivers exceptionally robust, handcrafted products.

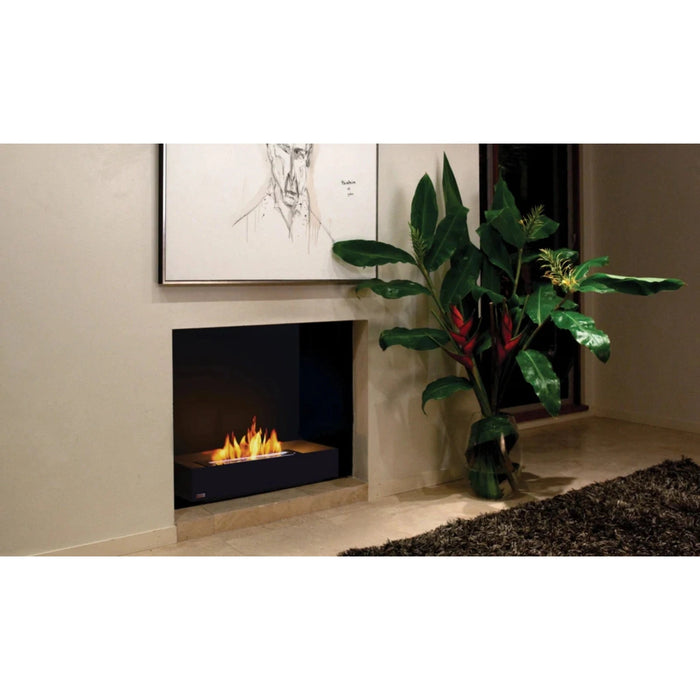

Convert an existing fireplace in minutes - Transforming an existing wood-burning fire into a clean burning ethanol fireplace is easy. Simply attach the grate to a level platform with our easy fitting system and fill it with liquid bioethanol. Then sit back and relax.
Optional sizes - The Grate Series is available in three sizes – the smallest, Grate 18 (with AB8 Burner), the Grate 30 (with XL500 Burner), and the largest Grate 36 (XL700 Burner).
No Gas or Electricity - All the fuel is housed within the self-contained burner so you don’t have to run pipes or cables through your walls.
Tested World Wide Our collection has been thoroughly tested against a number of global standards and is UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfies the ACCC Safety Mandate for Australia.
Specifications
Fireplace Grate 30 Specifications
Construction
Weight
18.70kg [41.23lb]
Model Dimensions: mm [in]
L 762mm [30in]
W 330mm [13in]
H 156mm [6.1in]
Application
Indoor
Materials
Concrete Composite, Stainless Steel Grade 304
Model Colour
Graphite
Burner Efficiency (XL500)
Capacity:
5 L [1.3 Gal]
Heats on Average:
40m2[431ft2]
Minimum Room:
80m3[2825ft3]
Burn Time:
10 - 13 h
Thermal Output:
12 MJ/h - 11430 BTU/h - 3.4 kW
Packaging
Shipping Weight
26.70kg [58.86lb]
Packaging Dimensions: mm [in]
L 1175mm [46.3in]
W 456mm [18in]
H 301mm [11.9in]
CBM
0.16m3
Type
Carton
Product Manuals
Spec Sheet
Installation Guide
Burner Manual
