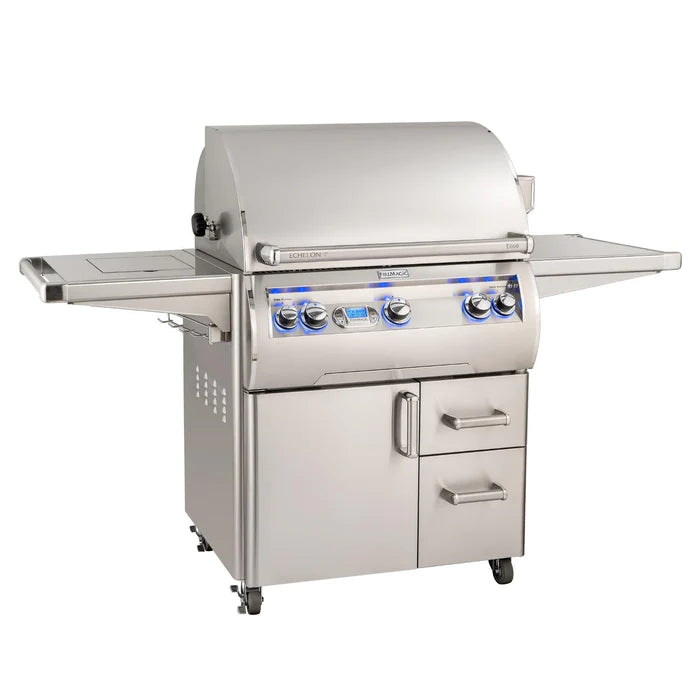

Fire Magic 30-Inch Echelon Diamond Freestanding Gas Grill

he Echelon Diamond E660S freestanding natural gas grill features 304 stainless steel construction for lasting quality, and modern styling with a sleek, contoured control panel that includes LED backlit comfort touch knobs and a state-of-the-art digital thermometer display.

This display has 4 zone temperature reading and can be used to monitor the included food probe. With finger touch controls, you can set temperatures, monitor cooking time, switch the internal lights on or off, and even choose between 4 colors for the display. The double-walled, spring assisted hood opens 90 degrees for easier access and more efficient exhaust. Inside, this grill features three cast stainless steel E-burners, made with 1/4-inch thick walls and precision porting, that combine for 75,000 BTUs.

Reliable hot surface ignition always lights your burners where others might fail. Flash tubes serve as a backup. Flavor grids sit above the burners to spread heat evenly and protect the burners from debris and grease.

These flavor grids have attached heat zone separators, allowing you to create independent heat zones at the surface of the grill for varied cooking options. The 660 sq. in. cooking surface consists of the patented Diamond Sear cooking grids. These grids feature a matte, non-stick surface, and a trapezoidal shape that optimally transfers heat from the burner to the wide surface of the cooking grids. The warming rack above can be adjusted and moved out of the way when not in use.

In the rear of the grill is a Quantum stainless steel infrared backburner for the included heavy duty rotisserie kit that produces 11,000 BTUs of radiant heat. This burner uses stainless steel foam, which provides double the heat per BTU.

Additionally, Echelon Diamond grills come with a charcoal/smoker basket for adding delicious, smoky flavor to your cook. For night time grilling, the interior of the grill is lit by two halogen lights. A new, larger drip tray with ball bearing glides makes cleanup with the disposable drip pan system even easier than before.

The grill comes on a stainless steel cart which includes two storage drawers and two side shelves. One of these shelves folds down while the other contains a flush mounted 15,000 BTU side burner for extra cooking versatility.

Locking casters keep the cart in place. A 120 VAC power source is required for ignition, as well as for the lighting functions. With all of these premium features, the Echelon Diamond series from Fire Magic defines luxury grilling.

Features

• Diamond Sear cooking grids feature a wide, flat top, optimally transferring heat from the burner to the cooking surface
• Cast stainless steel burners with flavor grids provide even heating and independent heat zones
• Includes flush mounted 15,000 BTU side burner for additional cooking space and versatility
• Quantum rotisserie burner produces twice the heat per BTU of standard infrared burners

Specifications

• Cooking Surface: 30″w x 22″d (1,056 sq. in.)
• Warming Rack: 30″w x 8″d (384 sq. in.)
• Main burners: 78,000 BTU’s
• Backburner: 11,000 BTU’s
• 110v/120V Power supply required
