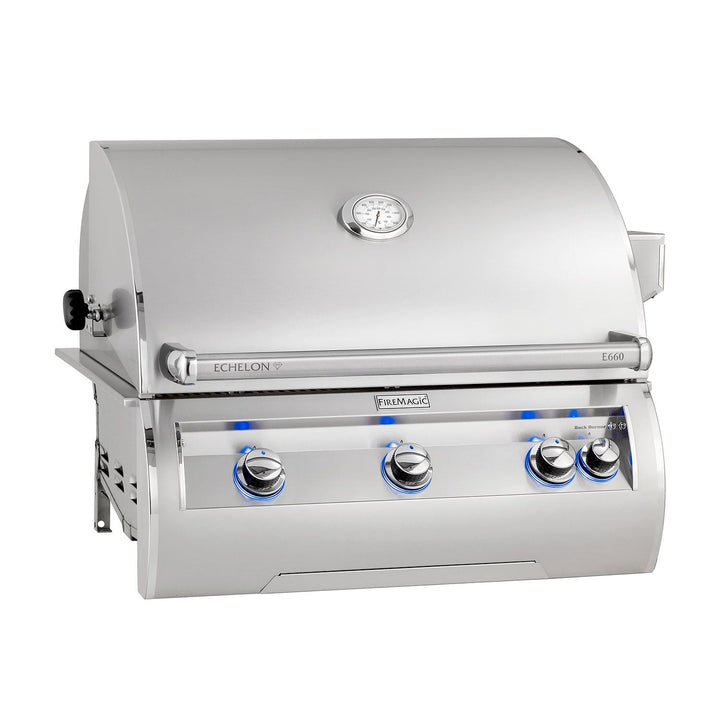

When only the best will do, our top-of-the-line Fire Magic Echelon grill combines the ultimate in performance, beauty, and innovation. With sleek lines, a unique contoured face, and state-of-the-art features such as hot surface ignition and blue backlit knobs with a Window.
Echelon Diamond defines luxury in grilling. Features Cast Stainless Steel Burners: Burners Made of ¼” Thick Cast 304 Stainless Steel 304 grade burners weighing up to 12 lbs, featuring a lifetime warranty. Designed with a protective lip above the ports to prevent clogging from grease. Guaranteed for life.
Diamond Sear Cooking Grids are superior! Diamond Sear Cooking Grids have a patented design with bars with a smooth flat top; each bar measures over .35” wide at the top covering over one-half of the total cooking surface. Each bar is shaped to optimally transfer the heat from the burners to the cooking surface so food cooks faster and more evenly!
Flavor Grids perform by allowing heat to rise unobstructed from the burner to the cooking grids. They disperse heat quickly and evenly flavor the food by vaporizing juices and minimizing flare-ups and grease fires. They are also easy to clean and maintain.
A charcoal smoker basket enhances the flavor of the food you grill by adding charcoal or wood chips. The stainless steel basket sits on top of the burner easily igniting the charcoal or wood chips.
Comfort touch polished knobs are smooth, seamless lines with polished highlights that feature back-lit knobs (at 41°) with comfort touch grips and flame icons for convenience and safety (flame turns red when on).
A Recessed Infrared Quantum Back-burner uses 100% stainless steel foam which provides much more BTU heat for quicker more efficient rotisserie grilling. It also includes a stainless steel cover to protect the back burner when not in use.
Echelon drip tray: Built with ball bearings for easy glide. Perfect size for easy handling. Use Fire Magic drip tray liners for convenient cleanup. A chrome analog thermometer with a meat probe is included, digital thermometer upgrade is available which provides a state-of-the-art electronic thermometer display, with a meat probe, and has an impressive array of features.
Features
- Diamond Sear Cooking Grids made of heavy-duty 304 stainless steel
- Heavy gauge cast stainless steel E burners provide maximum heating capability and incredibly even heat
- 660 sq. in. of main cooking surface area
- 240 sq. in. of secondary cooking surface area
- 900 sq. in. total cooking surface area
- Three (3) E Burners provide 25,000 BTUs output each
- One (1) Quantum stainless steel infrared rear burners provides 11,000 BTUs each
- 86,000 BTUs total
- Flash tubes serve as a backup
- Simple electronic ignition
- Rotisserie kit included
-
Interior halogen lights
- Backlit control knobs
- Choice of 4 colors for backlighting
- Charcoal/smoker basket included
- Can replace one E-shaped burner with an infrared burner at no extra cost
Specifications
Weight: 245 lbs
Overall Dimensions: 27" H x 34.375" W x 30.5" D
Cutout Dimensions: 11.5" H x 31.25" W x 23.5" D
Resources
Fire Magic E660i Echelon Diamond Gas Grill Downloads
Fire Magic Product Spec Guide
Fire Magic Built-in Manual
FIRE MAGIC WARRANTY INFORMATION
Lifetime warranty: cast stainless steel burners, stainless steel rod cooking grids, and stainless steel housing.
15-year warranty: brass valves, inner liners, manifold assemblies, porcelain housings, and backburner assemblies (excluding ignition parts).
5-year warranty: flavor grids and infrared burners.
3-year warranty: side burners and other Fire Magic grill components (excluding ignition and electronic parts).
1-year warranty: ignition systems, electronic components, and grill accessories
