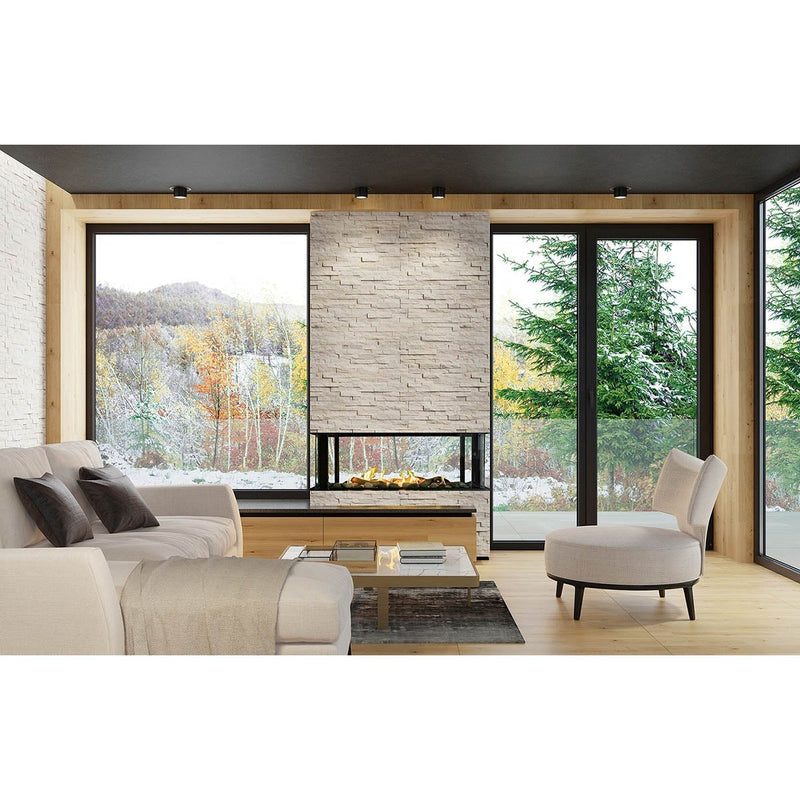

The Lyon 48” brings the-see thru linear gas fireplace a wonderful new look! Lyon gives you no screens, safe to touch glass, and an incredibly mesmerizing flame, you will love the Lyon.
You can connect any room in your house with this fireplace, creating a flow in your home from setting to setting.
Product Features
- Double Glass, & Screen Free
- 4 Sided See Through Unit – Full 360° View
- 32,500 BTU on high & 21,000 BTU on low
- All Wood Framing
- Concrete Board Required
- Able to Finish with Combustibles around the fireplace
Product Information
Specifications & Dimensions
No Limitations
The Technology
-
All Contained within the fireplace
-
No Gaps
-
No Louvres
-
No Heat Dump
-
Wood and Drywall – Combustibles Okay
-
Quick and Simple Installation. – No technician required for cleaning inside the glass
No Gap
With a lot of fireplaces, they need to create an escape for the heat to vent out. To do this they leave a gap at the top of the fireplace wall to create a crown to hide the opening. A gap is not necessary.
No Intake or Exhaust Louvres
Your wall will not have any intake or exhaust louvres to break up the look.
No Heat Dump
There are no vents required behind the wall of the fireplace to dump the built up heat.
Combustibles Okay
Everything is contained within the firebox. Able to finish with combustibles around the fireplace. No special concrete board or metal studs
Glass Viewing Area:
Lyon 48 NG – 15.34” H x 45.16” W
Side View Area Dimensions:
Lyon 48 NG – 15.34” H x 13.40” W
HEAT SHIELD
Now you can enjoy:
Clear View: Double wall glass technology
Clear View has done away with the need for distractive safety screens. The double shield glass, protects hands from burning, while you can enjoy uncompromised views of your stunning fireplace.
Warm Glass System: Safety touch glass
The Warm Glass System, skillfully brings the temperature of the glass down below the stringent standard of 172 degree, while still allowing radiant heat to efficiently heat your room.
Easy Clean: No technician required
With the easy maintenance glass removal system, you won’t need a service technician to come and clean our fireplace viewing glass area.
Installation Requirements
- This unit must be installed by a licensed, authorized service technician or contractor. Installation has to follow the instructions supplied with the product and all local and national building and fire codes.
- Venting components must be certified for use with this product. Problems caused by uncertified venting or vent terminations are not covered under warranty.
- Parts from other manufacturers will void the warranty.
- Refer to the User Manual and Spec Sheet below for exact venting sizes, clearances and framing dimensions before you frame the opening.
Warranty
Sierra Flame guarantees this gas fireplace to be free of defects in materials and workmanship for 5 years from the date of purchase. That covers combustion chambers, heat exchangers and burners, plus stainless steel parts against tarnishing.
1 year coverage applies to electrical (110 volt and millivolt) components and wearable parts: blowers, gas valves, thermal switches, switches, wiring, remote controls, igniters, gaskets, glass (thermal damage only) and pilot assemblies. Sierra Flame provides replacement parts free of charge during that first year.
Conditions worth knowing before you buy:
- The warranty applies to the original purchaser only, and only when bought through an authorized Sierra Flame dealer. It is nontransferable.
- It does not cover installation, labor, construction, transportation or other related costs.
- It does not cover damage from misuse, lack of maintenance, accident, alteration, abuse or neglect, nor scratches, dents, corrosion or discoloring from excessive heat, abrasives or chemical cleaners.
- Keep your bill of sale. A serial number and model number are required for any warranty claim.
Archic Furniture is an authorized dealer, so your unit qualifies for full factory warranty coverage.
FAQs
What gas does this model use?
This is the natural gas configuration, model LYON-48-NG.
How long is the warranty?
5 years on the firebox, burners and heat exchanger, and 1 year on electrical and wearable parts. See the Warranty section above for the full terms.
Can I install it myself?
No. Sierra Flame requires installation by a licensed, authorized technician or contractor. Self-installation voids the warranty.
Do I need to clean the glass professionally?
No. The glass removal system is designed so you can clean the inside of the viewing glass without a service technician.
