Introducing the Sunstone 34 In. Gas Hybrid Charcoal Grill and Bar Centers Base Cabinet - The Ultimate Solution for Your Outdoor Cooking Needs!

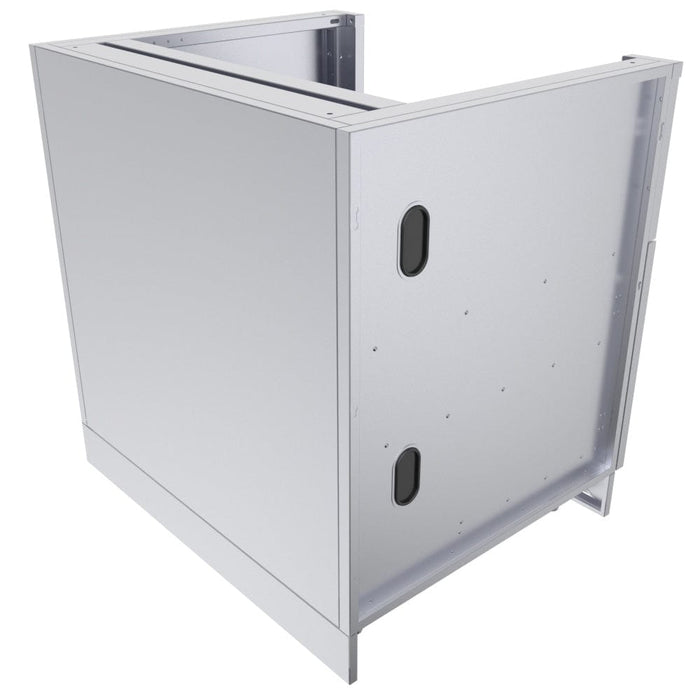

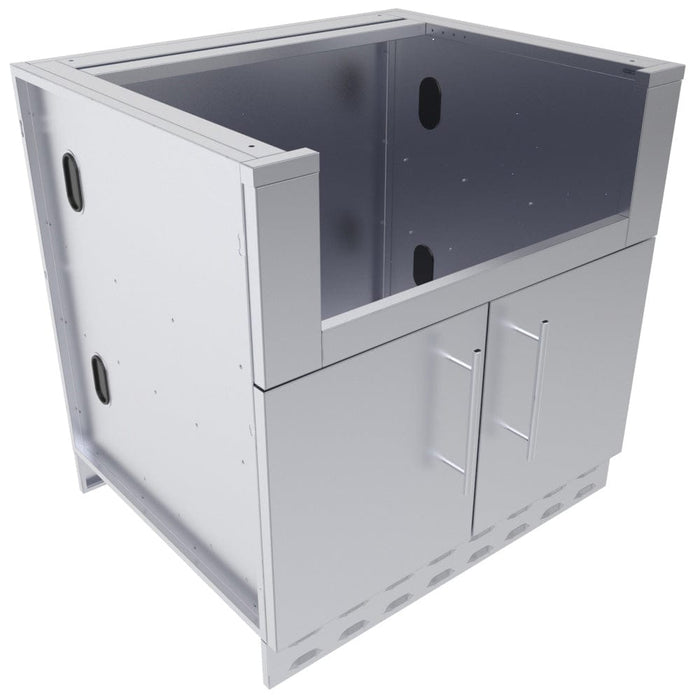

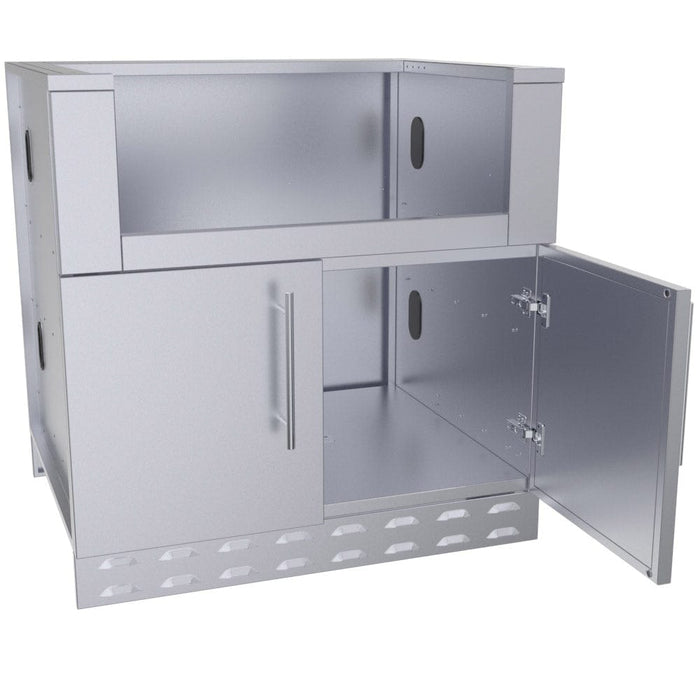

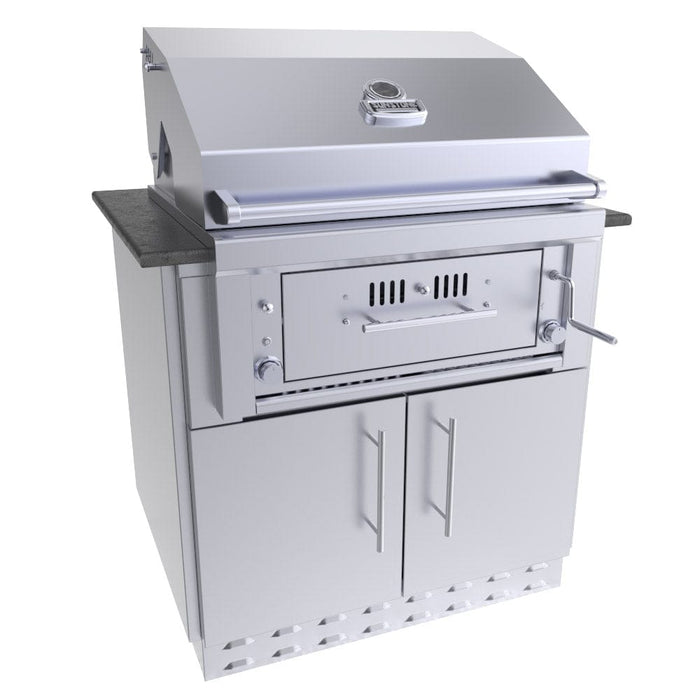

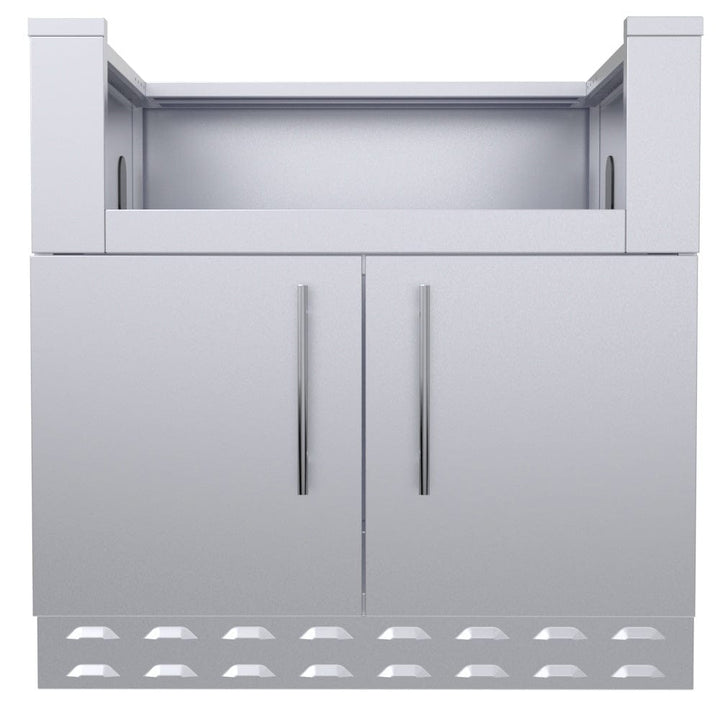

The Sunstone 34 In. Gas Hybrid Charcoal Grill and Bar Centers Base Cabinet is a versatile and innovative cabinet designed to accommodate multiple Types of Gas Grill, Charcoal grills, or Bar Center Brand Models right out of the box, making installation a breeze. The appliance cabinet features double access doors, providing ample storage space for all your grilling essentials. It also comes equipped with multiple utility access ports at the base for drainage, as well as side ports for water, gas, and electrical lines.
The cabinet comes Fully Assembled, requiring only the fastening of the four included Peg-Legs, screwing in place each 304 SS Rod Handle, and mounting the Front and Back Kick-Plates. To ensure a perfect fit for your preferred grill or bar center, the cabinet makes use of a "TRIM-KIT" that is installed on the front face of the cabinet. This allows for compatibility with Grills's "CUT-OUT" Sizes ranging between 23-7/8 In. to 28-1/2 In. Width and 10-3/8 In. to 12-3/4 In. Max Height, with the counter at 3/4 In. Height with Filler Rail installed or removed. For additional height adjustment, you can remove the Bottom Filler Rail or add a Thicker Counter or Backer Board. Rest assured that if your grill is in any of our Models, the correct Trim-Kit will be automatically included.
Features
- Works w/SUNCHSZ30
- Lifetime Structure Warranty
- 304 SS Rod Handles
- Rear Solid Kick-Plate
- Easy Pin-Lock Installation
- Covered Side Wall Access Ports
- Optional Wheel Casters
- 304 SS Structure
- Replaceable Face Panel
- Front Vented Kick-Plate
- Soft-Close Drawer Tracks
- Removable Counter Rail
- 4 Adjustable Peg-Legs
Specifications
-
SKU: SAC34CGDC
-
With Legs: 34"W x 28-1/4"D x 34-1/2"H
-
Without Legs: 34"W x 28-1/4"D x 30-1/2"H
-
Max Adjustable Height: Up to 36"
-
Net Weight: 136.4 Lbs
-
Package Size: 37"W x 31" L x 33" H
-
Package Weight: 147 Lbs
-
Insertable Products: 28" Charcoal-SUNCHSZ28 & 30" Charcoal-SUNCHSZ30
- SAC34CGDC TRIM-KIT:
| Item Number |
Sleeve Cut-Out |
Product Option |
| SCC34CTK2.5 |
28-1/2" W x 12-3/4" H x 24-1/2" Maximum Depth |
Pcm® 30" Charcoal, Twin Eagles® 30" Charcoal, Vintage® 30" Charcoal, Alfresco® 30" Varsa Apron Sink, Solaire® 30" Bar Station, Bull® 30" Bar Center, Beefeater® 30" Bar Center, Lynx® 30" Bar Center |
| SC34CTK3.25 |
27-1/2" W x 13-3/4" H x 24-1/2" Maximum Depth |
Charcoal Grill Trim Kit |
| SCC34CTK3.75 |
26-3/8" W x 10-3/8" H w/Support Rail or 12-3/4" Height wo/Support Rail x24-1/2" Maximum Depth |
Sunstone® 30" Hybrid Grill - SUNCHSZ30, PGS® 27" Beverage Center |
| SCC34CTK4.5 |
25" W x 10-3/8" H w/Support Rail or 12-3/4" Height wo/Support Rail x 24-1/2" Maximum Depth |
Sunstone® 28" Charcoal - SUNCHDZ28, Fire Magic® Aurora® Grill |
| SCC34CTK5 |
23-7/8" W x 10-3/8" H w/Support Rail or 12-3/4" Height wo/Support Rail x 24-1/2" Maximum Depth |
PGS® 24" Beverage Center, Solaire® 24" Bar-tending Station |
Disclaimer: The trademarks used in the “Product Option” belongs to the respective owners who do not sponsor nor are they affiliated with Sunstone Metal Products, L.L.C. The specific product Cut-Out Dimensions have not been directly confirmed by any Sunstone Metal Products LLC, representative or employee. Use your own discretion to confirm the exact product fit.
