Introducing the Sunstone 34 In. Gas Grill Base Cabinet - The Ultimate Solution for Your Gas Grill Setup!

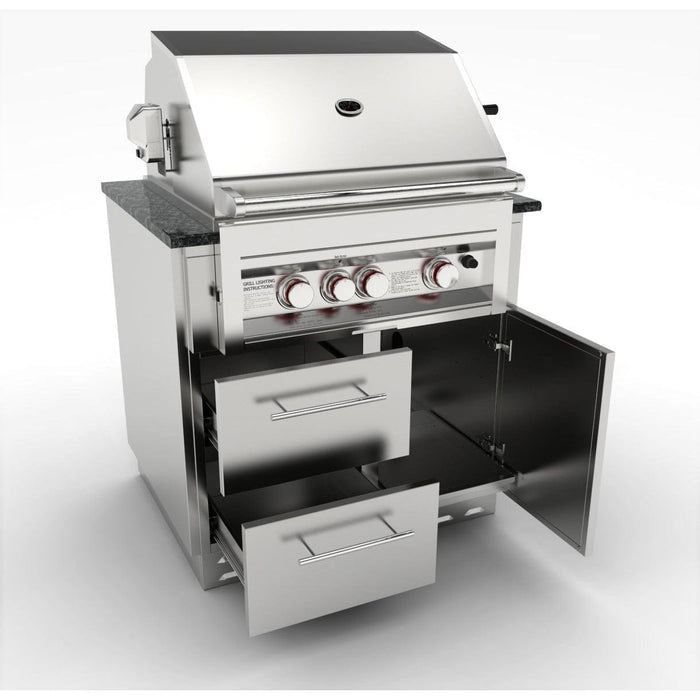

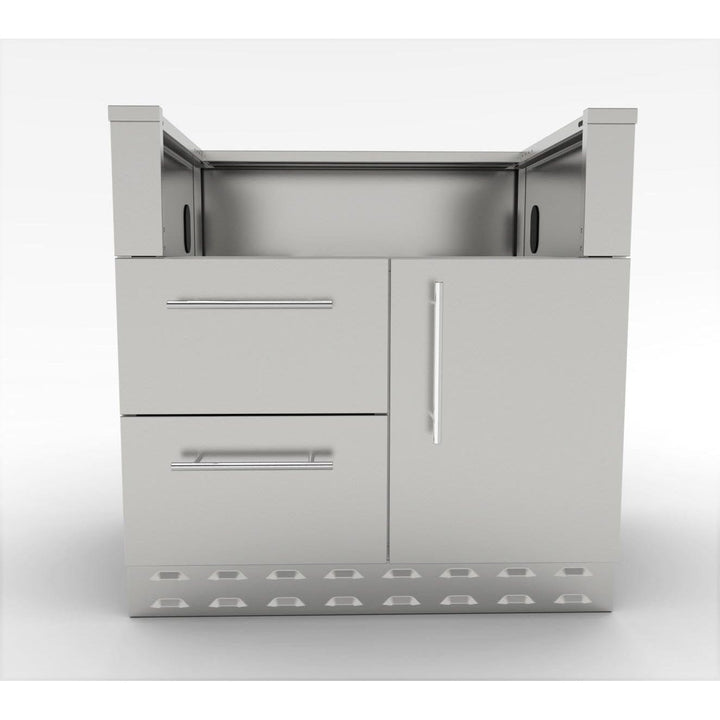

The Sunstone 34 In. Gas Grill Base Cabinet is ingeniously designed to accommodate multiple Gas Grill Brand Models right out of the box, making installation a breeze. The cabinet features a convenient Right Side Door Enclosure, perfect for storing a Propane Tank or Trash Bin. On the Left side, you'll find Two Large Drawers with ample storage space for all your BBQ Utensils, Rubs, and Sauces.
The cabinet comes Fully Assembled, requiring only the fastening of the four included Peg-Legs, screwing in place each 304 SS Rod Handle, and mounting the Front and Back Kick-Plates. To ensure a perfect fit for your preferred grill, the cabinet makes use of a "TRIM-KIT" that is installed on the front face of the cabinet. This allows for compatibility with Grills's "CUT-OUT" Sizes ranging between 23-7/8 In. to 28-1/2 In. Width and 8 In. to 10 1/4 In. Max Height, with the counter at 3/4 In. Height with Filler Rail installed or removed. For additional height adjustment, you can remove the Bottom Filler Rail or add a Thicker Counter or Backer Board. If you own any of our Models, rest assured that the correct Trim-Kit will be automatically included.
Features
- Lifetime Structure Warranty
- 304 SS Rod Handles
- Rear Solid Kick-Plate
- Easy Pin-Lock Installation

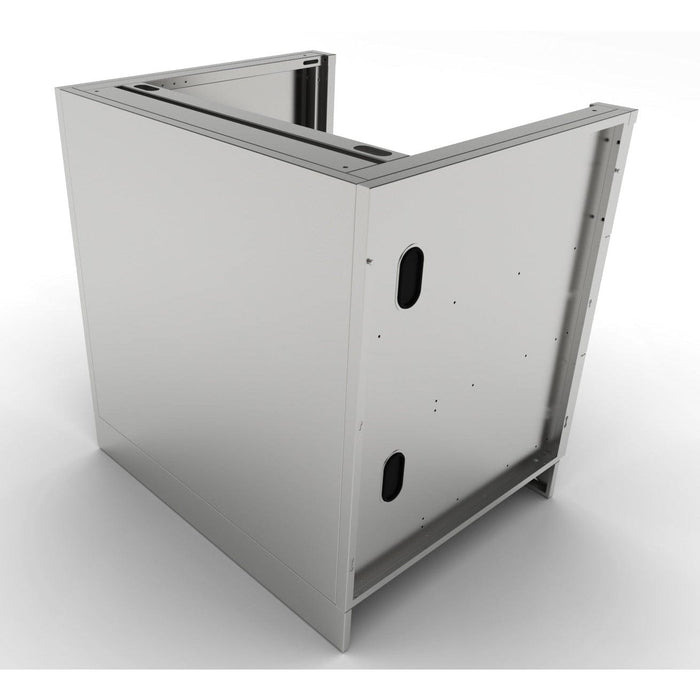

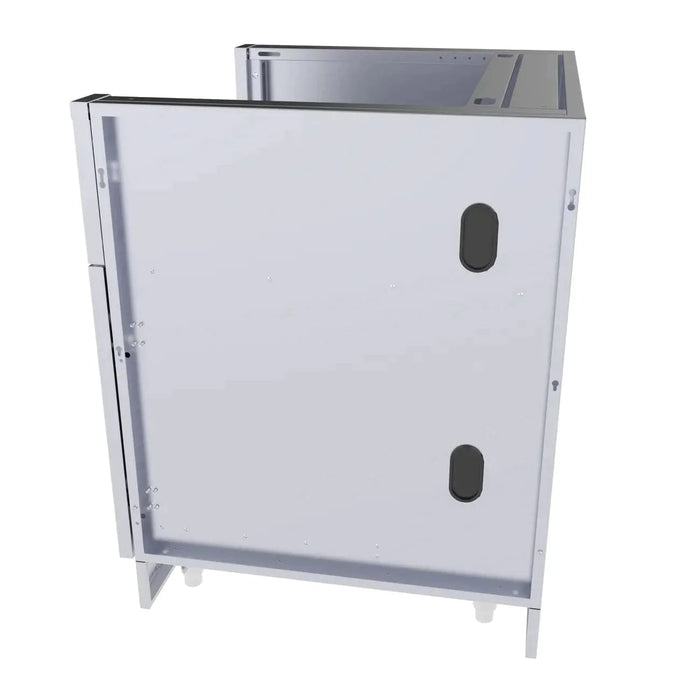

- Covered Side Wall Access Ports
- Optional Wheel Casters
- 304 Stainless Steel Structure
- Front Vented Kick-Plate
- Soft-Close Drawer Tracks
- Removable Counter Rail
- 4 Adjustable Peg-Legs
- Replaceable Face Panel
Specifications
-
SKU: SAC34GLPCD
-
With Legs: 34"W x 28-1/4"D x 34-1/2"H
-
Without Legs: 34"W x 28-1/4"D x 30-1/2"H
-
Max Adjustable Height: Up to 36"
-
Net Weight: 136.4 Lbs
-
Package Size: 37"W x 31" L x 33" H
-
Package Weight: 147 Lbs
-
Insertable Products: SUN3B / SUN3BIR /Ruby3B
- SAC34GLPCD TRIM-KIT:
| Item Number |
Sleeve Cut-Out |
Product Options |
| SCC34GTK2.5 |
28-1/2" W x 10-1/4" H x 24-1/2" Maximum Depth |
Alfresco® 30", DCS® 30" Grill |
| SCC34GTK3.25 |
27-1/2" W x 10-1/4" H x 24-1/2" Maximum Depth |
Evo® 30" Affinity Circular Cooktop,Sunstone® Ruby 30" Grill |
| SCC34GTK3.75 |
26-3/8" W x 8" H w/Support Rail or 10-1/4" Height wo/Rail x 24- 1/2" Maximum Depth |
N/A |
| SCC34GTK4.5 |
25" W x 8" H w/Support Rail or 10-1/4" Height wo/Rail x 24-1/2" Maximum Depth |
Sunstone® 28" Grill, Coyote® 28" grill |
| SCC34GTK5 |
23-7/8" W x 8" H w/Support Rail or 10-1/4" H wo/Rail x 24-1/2" Maximum Depth |
Steele® 26" Grill |
Disclaimer: The trademarks used in the “Product Option” belongs to the respective owners who do not sponsor nor are they affiliated with Sunstone Metal Products, L.L.C. The specific product Cut-Out Dimensions have not been directly confirmed by any Sunstone Metal Products LLC, representative or employee. Use your own discretion to confirm the exact product fit.
