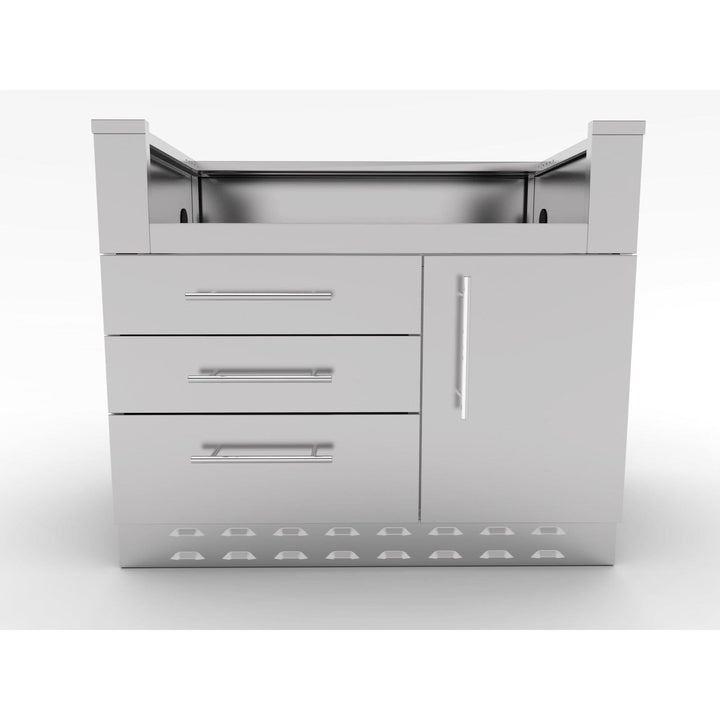

Upgrade your outdoor grilling experience with the 40 In. Sunstone Gas Grill Base Cabinet: Effortless Installation and Ultimate Convenience!
Designed to accommodate multiple Gas Grill Brand Models, the Sunstone Gas Grill Base Cabinet makes installation a breeze right out of the box. This uniquely crafted cabinet features a convenient Right Side Door Enclosure, perfect for housing a Propane Tank or Trash Bin, while the Left Side boasts Three Large Drawers, offering ample storage space for all your essential BBQ utensils, rubs, and sauces.
Easy Assembly, Ready to Use: Enjoy the convenience of a fully assembled cabinet, requiring just a few simple steps to set up. Fasten on the four included Peg-Legs, screw in place each 304 SS Rod Handles, and mount the Front and Back Kick-Plates to complete the setup. It's that easy!
Customizable to Fit Your Grill: The cabinet's genius "TRIM-KIT" feature allows you to adapt it to fit your preferred grill seamlessly. It is compatible with Grill "CUT-OUT" Sizes ranging from 29-3/4 In. to 34-1/2 In. Width and 8 In. to 10-1/4 Max Height, with the counter at 3/4 In. Height and the Filler Rail installed or removed. For added flexibility, you can adjust the height further by removing the Bottom Filler Rail or adding a Thicker Counter or Backer Board. Rest assured that if your grill is one of our Models, we will automatically include the correct Trim-Kit for your convenience.
Features
- Lifetime Structure Warranty
- 304 SS Rod Handles
- Rear Solid Kick-Plate
- Easy Pin-Lock Installation
- Covered Side Wall Access Ports
- Optional Wheel Casters
- 304 Stainless Steel Structure
- Front Vented Kick-Plate
- Soft-Close Drawer Tracks
- Removable Counter Rail
- 4 Adjustable Peg-Legs
- Replaceable Face Panel
Specifications
-
SKU: SAC40GLPCD
-
With Legs: 40"W x 28-1/4"D x 34-1/2"H
-
Without Legs: 40"W x 28-1/4"D x 30-1/2"H
-
Max Adjustable Height: Up to 36"
-
Net Weight: 156.6 Lbs
-
Package Size: 43"W x 31" L x 33" H
-
Package Weight: 171 Lbs
- SAC40GLPCD TRIM-KIT:
| Item Number |
Sleeve Cut-Out |
Product Options |
| SCC40GTK2.5 |
34-1/2" W x 10-1/4" H x 24-1/2" Maximum Depth |
,DCS® 36" Grill, Alfresco® 36" Grill |
| SCC40GTK3.25 |
33-1/2"W x 10-1/4" H x 24-1/2" Maximum Depth |
36" Ruby® Grill |
| SCC40GTK3.75 |
32-1/4" W x 8" H w/Support Rail or 10-1/4" Height wo/Rail x 24- 1/2" Maximum Depth |
Blaze® Pro 34" Grill |
| SCC40GTK4.5 |
30-7/8" W x 8" H w/Support Rail or 10-1/4" Height wo/Rail x 24- 1/2" Maximum Depth |
Sunstone® 4B 34" Grill, Steele® 32", AOG® 30" Bull® 30", Lion® 32", Blaze® 32", Coyote® 34" |
| SCC40GTK5 |
29-3/4" W x 8" H w/Rail
or 10-1/4" Height wo/Support Rail x 24-1/2" Maximum Depth |
Gas Grill Trim Kit |
Disclaimer: The trademarks used in the “Product Option” belongs to the respective owners who do not sponsor nor are they affiliated with Sunstone Metal Products, L.L.C. The specific product Cut-Out Dimensions have not been directly confirmed by any Sunstone Metal Products LLC, representative or employee. Use your own discretion to confirm the exact product fit.
