Elevate Your Grilling Experience with the 66 In. Sunstone Hybrid Pellet Grill Base Cabinet
Are you a passionate grilling enthusiast looking to take your outdoor cooking game to the next level? Look no further! The 66 In. Sunstone Hybrid Pellet Grill Base Cabinet is the ultimate solution to elevate your grilling adventures. This uniquely designed cabinet is your gateway to hassle-free setup and installation for multiple hybrid and pellet grill brand models right out of the box.

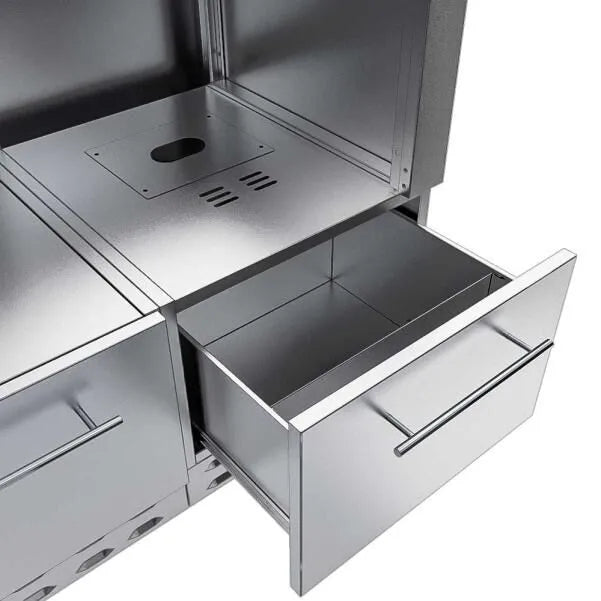

A Storage Marvel Our comprehensive cabinet package includes three SCC22PTD, three SCC22BPE, one SCC16RARM, one SCC16LARM, adjustable height legs, front vented kick-plates, cabinet back kick-plates, and solid 304 stainless steel rod handles. With the optional wheel casters (sold separately), you can easily transform this cabinet into a mobile grill cart or create expansive rolling cabinet island configurations. The three SCC22PTD drawers, each equipped with a single large drawer and a removable partition wall near the front, keep your grilling essentials meticulously organized. Store large bags of pellets, various flavors, BBQ utensils, rubs, sauces, and more. Assembling this cabinet is a breeze, with components that are individually fully assembled. Simple Pin-Hinge Connections and provided bolts allow you to securely fasten each component together. Once configured, the cabinet is rigorously tested to withstand the weight of even the heaviest countertops.
Quality That Endures a Lifetime Crafted from high-quality 304 stainless steel components, the 66 In. Sunstone Hybrid Pellet Grill Base Cabinet is built to withstand the test of time. With a lifetime structure warranty, you can have peace of mind knowing your investment is protected. The front vented kick-plate and rear solid kick-plate provide added protection for your grill, while the removable counter rail and covered side wall access ports simplify grill installation. The replaceable face panel allows you to change the cabinet's appearance whenever you desire. Achieving a level surface is effortless thanks to the eight adjustable peg-legs.
Customize Your Dream Outdoor Kitchen Once assembled, the cabinet measures an impressive 66 In. Width x 28-1/4 In. Depth with drawers x 34-1/4 In. Height with the included 4 In. Height Peg Legs, which can be further adjusted by an additional 1-1/2 In. in Height. The 66 In. Sunstone Hybrid Pellet Grill Base Cabinet is remarkably versatile and easy to customize to match your outdoor kitchen vision. The included trim-kit adapts the cabinet to accommodate your preferred grill, compatible with grill cut-out sizes ranging from 54-3/8 In. Width to 60-1/2" Width x 16-1/4 In. Height x 24-1/2 In. Maximum Depth Max Height with counter at 3/4 In. Height. Additional cut-out height adjustments can be achieved by adding a thicker counter or backer board. Consult the cabinet specification sheet for precise details on matching your grill's cut-out dimensions to the correct trim-kit. Please note that all trim-kits must be installed on the cabinet before attaching it to other cabinets on the left or right sides.
Upgrade your grilling setup today and experience the difference with the 66 In. Sunstone Hybrid Pellet Grill Base Cabinet. Unleash your culinary creativity and transform your outdoor space into a grilling paradise!
Features
- The Ultimate Grilling Cabinet
- Built to Last: High-Quality Components and Construction
- Lifetime Structure Warranty
- 304 SS Structure 304 SS Rod Handles
- Replaceable Face Panel
- Front Vented Kick-Plate Rear Solid Kick-Plate
- Soft-Close Drawer Tracks
- Easy Pin-Lock Installation
- Removable Counter Rail
- Covered Side Wall Access Ports
- 8 Adjustable Peg-Legs
- Optional Wheel Casters
- Versatile and Convenient
- Customize Your Outdoor Kitchen with Ease
Specifications
-
SKU: SAC66HGDC
-
With Legs: 66"W x 28‐1/4"D (w/Drawers) x 34‐1/2"H
-
Without Legs: 30‐1/2"H
-
Max Adjustable Height: Up to 36"
- SAC66HGDC TRIM-KIT:
| Item Number |
Sleeve Cut-Out |
Product Option |
| SCCHGCTK4.75 |
57" Width x 16-1/4" Height x 24-1/2" Maximum Depth |
No Known Models |
| SCCHGCTK6.25 |
54-3/8" Width x 16-1/4" Height w/Rail or 12-3/4" Height wo/Rail x 24-1/2" Maximum Depth |
No Known Models |
| SCCHGCTK3 |
60-1/2" Width x 16-1/4" Height wo/Rail x 24-1/2" Maximum Depth |
AMG® 54" Hybrid Grill |
Disclaimer: The trademarks used in the “Product Option” belong to the respective owners who do not sponsor nor are they affiliated with Sunstone Metal Products, L.L.C. The specific product Cut-Out Dimensions have not been directly confirmed by any Sunstone Metal Products LLC, representative or employee. Use your own discretion to confirm the exact product fit.
Downloads
User Manual
Product Dimensions
